Á¦ Ç° ¸í : VacMaster¢â accessories
Á¦ Á¶ »ç : Biotage
Á¦Ç°ÄÚµå : 124-100
°ü·ÃÀÚ·á: VacMaster_accessories.pdf (161,274 KB)


»ó¼¼¼³¸í

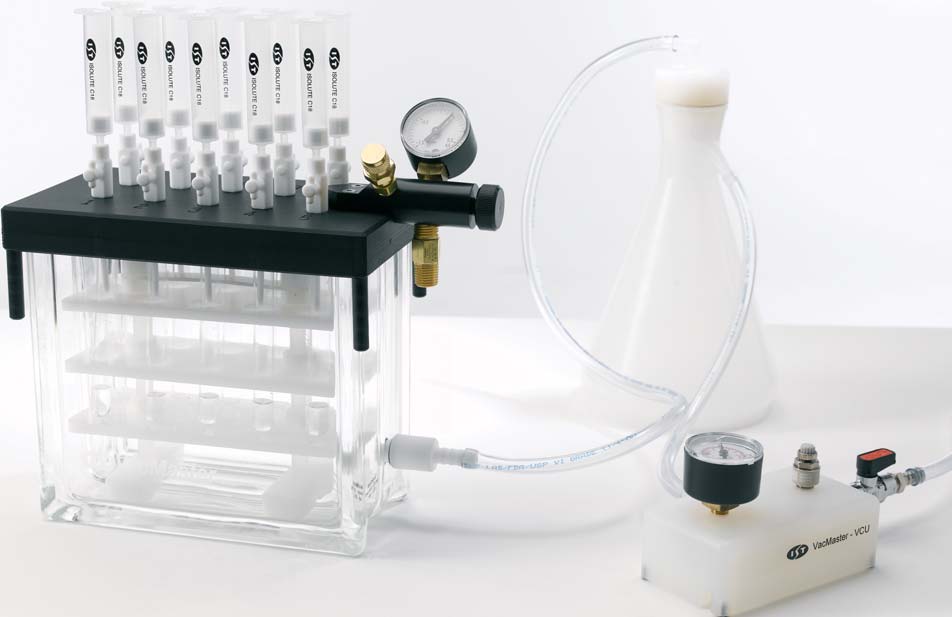

VacMaster¢â Trap Kit
Connect between VacMaster (-10, -20, or -96) and vacuum source to collect waste. 1 L volume.
The VacMaster trap kit should be installed between the VacMaster manifold outlet and the inlet of the vacuum source in order to trap all the liquids aspirated through the SPE columns. The trap kit consists of a polypropylene flask and polypropylene stopper with compatible tubing.

Features and Advantages
  • Collect waste solvents and samples, cleanly and efficiently
  • Prevent contamination of vacuum control units, removing spray of aspirated liquid
  • Easy to clean components, reducing preparation time

    Ordering Information

    Part Number

    Description

    Qty.

    121-2095

     VacMaster trap kit (complete)

    1

    121-2096

     Vacuum flask with side arm

    1

    121-2097

     Flask stopper with 1 tubing connector

    1

    121-2098

     Replacement tubing (1.5 mtrs)

    1

    121-2099

     Replacement gasket

    1

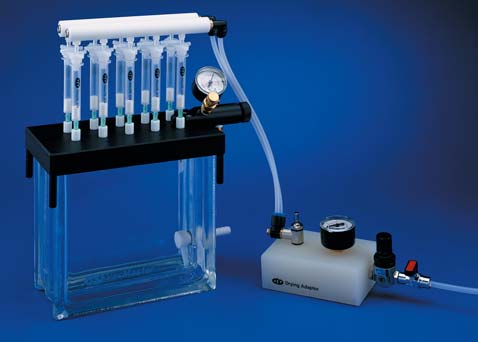

    VacMaster¢â Drying Adaptor
    Connect to laboratory air or nitrogen supply to dry 10 or 20 SPE columns simultaneously

    Prior to elution of extracted aqueous sample with water immiscible solvents, it is often necessary to dry the SPE column sorbent bed. The VacMaster drying adaptor directs a stream of gas efficiently onto the column, significantly improving drying times compared to vacuum aspirated air flow. In addition, the coarse and fine gas flow control allow the drying adaptor to be used for elution solvent evaporation after extraction.

    Features and Advantages
  • Can be used with standard laboratory gas systems (e.g. nitrogen, air)
  • Fast efficient SPE column drying
  • Options for VacMaster-10 and VacMaster-20 sample processing manifolds

    Ordering Information

    Part Number

    Description

    Qty.

    124-1001

     VacMaster-10 Drying Adapter for 1, 3,and 6 mL columns

    1

    124-2001

     VacMaster-20 Drying Adapter for 1, 3,and 6 mL columns

    1

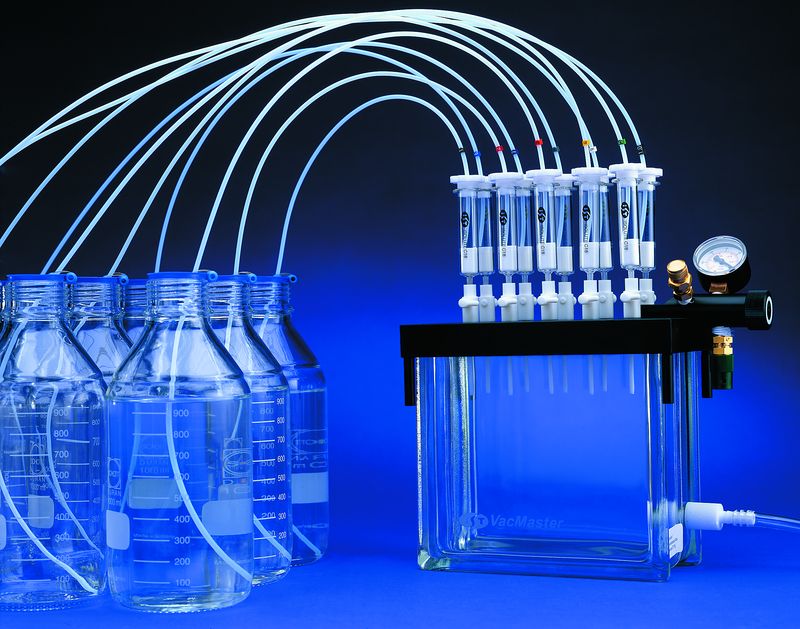

    VacMaster¢â Large Volume Extraction (LVE) Kit
    For unattended loading of large volume samples. Inert PTFE tubing prevents sample contamination

    VacMaster LVE kits are designed for simple, unattended loading of large volume sample onto SPE columns. PTFE tubing is placed into the sample container, and held in place with a tubing clip. The other end of the tubing is fitted to the SPE column with a suitable adaptor. When Vacuum is applied, the sample is drawn up through the inert tubing path, and through the SPE column.

    Each kit : PTFE tubing (10 x 1 m lengths) with numbered tags, tubing clips (10) and column adaptors (10).

    Features and Advantages
  • Unattended loading of large volume samples
  • PTFE components prevent sample contamination

    Ordering Information

    Part Number

    Description

    Qty.

    121-2090

     VacMaster LVE kit Drying (complete) for 1, 3,and 6 mL columns

    1



  •
