Home > Product > SPE > Biotage > Instruments

제 품 명 : Extrahera™, SLE & SPE 자동화 시스템
제 조 사 : Biotage
제품코드 : 414001
관련자료: pps353_extrahera_brochure.pdf (4,709,371 KB)


상세설명

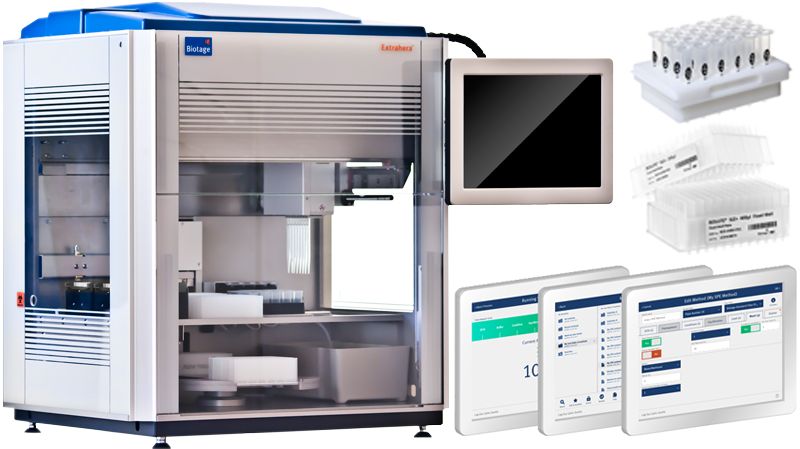

Extrahera™

SLE & SPE Automation System
Plate & Column, 모두를 처리하는 강력한 사용자 친화적 자동화 시스템!
No! 지루한 수동 추출 작업.

Extrahera™


√ SLE & SPE 고정밀 자동화
√ 12" 모니터 제어장치 내장
√ 진보한 Method 개발 기능 & 높은 재현성
√ 컴팩트한 디자인
√ Positive Pressure의 정밀한 Flow 제어
√ 96-well Plate, 96 columns(1mL), 24 columns(1, 3, 6 mL) 처리
√ Pipette Tip의 각 Sample & Solvent별 재사용
√ 간결한 사용자 Interface : Method 저장/재사용 & pdf 보고서 생성
Ordering Information
Part Number Description Qty
414001 Biotage® Extrahera™ 1
414007 Configuration Kit 96 Positions 1
414008 Configuration Kit 24 Positions 1

121-5202 Collection plate, 96-well, 1 mL (50/pk) 1
121-5203 Collection plate, 96-well2 mL (50/pk) 1
414257SP Collection Rack 18 mm 24 Positions 1

414253SP Column Rack 96 x 1 mL (tabless) 1
414169SP Column Rack 24 x 1 mL 1
414174SP Column Rack 24 x 3 mL 1
413640SP Column Rack 24 x 6 mL (tabless)

414254SP Sample Rack 16 x 100 mm 24 Positions 1
414255SP Sample Rack 13 x 100 mm 24 Positions 1
414256SP Sample Rack 12 x 75 mm 24 Positions 1

414201SP Flow Through Plate 96
414203SP Flow Through Plate 24

414141 Biotage Disposable Tips 1000 μL Clear (10 x Pk/96) 1
356330 Vacuum pump ME1C, 100-230 VAC, 50-60H 1


Technical Specs
Pipetting Specifications Up to 1000 µL in one aliquot
At 50 µL: ±2.0% accuracy and 1.0% CV*
At 100 µL: ±2.0% accuracy and 1.0% CV*
At 500 µL: ±1.5% accuracy and 1.0% CV*
At 1000 µL: ±1.0% accuracy and 1.0% CV*
Solvent Capacity 5 solvent pumps with automatic feed in from external reservoirs
Pressure Unit 0–5 bar positive pressure
Format 96-well extraction plates, 96-array plates for 1 and 2 mL wells
96-position extraction racks for 1 mL tabless columns (A format)
24-position extraction racks for 1, 3 and 6 mL columns (A, B and C format)
Plate Positions 5 positions used for sample, extraction and mixing plates etc. 4 used for elutions
Disposable Tips 1000 µL tips
Temperature Operating temperature: 15–32 ºC
Storage and transportation temperature -25 ºC to 60 ºC
Humidity 10–95% RH
Electrical Supply 100 to 240 V~, 50/60 Hz
Fuses T4A at the power inlet (2 required)
Maximum Power Consumed 300 VA
Pressurized Air Supply >5 L/min (0.18 cubic feet/min), 6 ± 0.2 bar (0.6 ± 0.02 MPa; 87 ± 3 psi)
Inert Gas Supply >5 L/min (0.18 cubic feet/min), 6 to 10 bar (0.6 to 1.0 MPa; 87 to 145 psi)
Vacuum Supply Partial pressure range: < 500 mbar (50kPa; 7 psi)
Flow rate: > 8.3 L/min (0.29 cubic feet/min)
Weight 75 kg (165 lbs)
Dimensions (W x D x H) Without touch screen: 610 x 510 x 730 mm (24.0" x 22.1" x 28.7")
With touch screen: 860 x 570 x 730 mm (33.8" x 22.4" x 28.7")
Max Sound Level 65 dB (A)
Touch Screen 12" Capacitive Touch
Ethernet LAN Complies with IEEE 802.3 (ANSI 8802-3)
USB USB 2.0
Certifications CE, CSA certified
*Values derived using a 1000 µL tip.

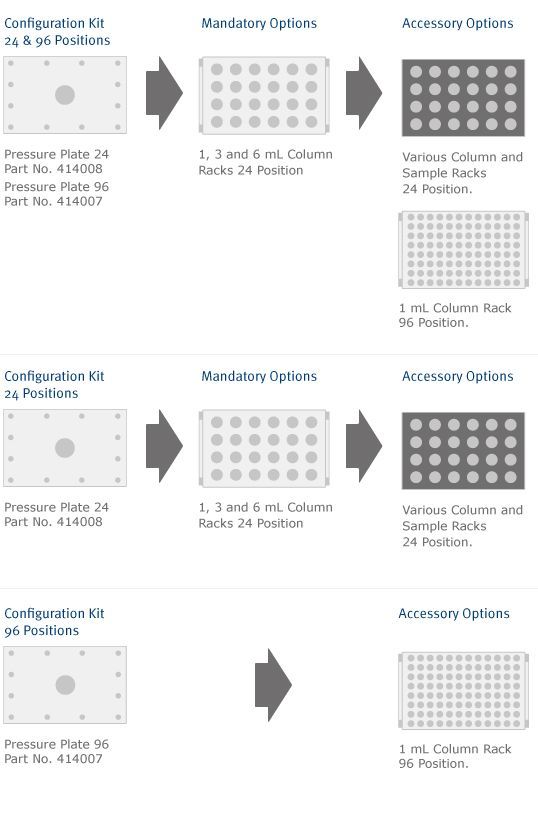

Configuration Guide
Dual System, 24 format, 96 format
Extrahera™
