Home > Product > SPE > Biotage > Instruments

제 품 명 : VacMaster™-96, 음압 처리 매니폴드
제 조 사 : Biotage
제품코드 : 121-9600
관련자료: VacMaster-96.pdf (178,297 KB)


상세설명

VacMaster™-96
Sample Processing Manifold (without vacuum control)

Ordering Information

Part #

Description

Qty.

121-9600

 VacMaster-96 Sample Processing Manifold (without vacuum control)

1

121-9601

 VacMaster VCU-1 Vacuum Control Unit

1

121-9602

 VacMaster VCU-2 Vacuum Control and Generation Unit

1

121-5203

 96 Well Collection Plates - Polypropylene, Square well - 2 mL

50

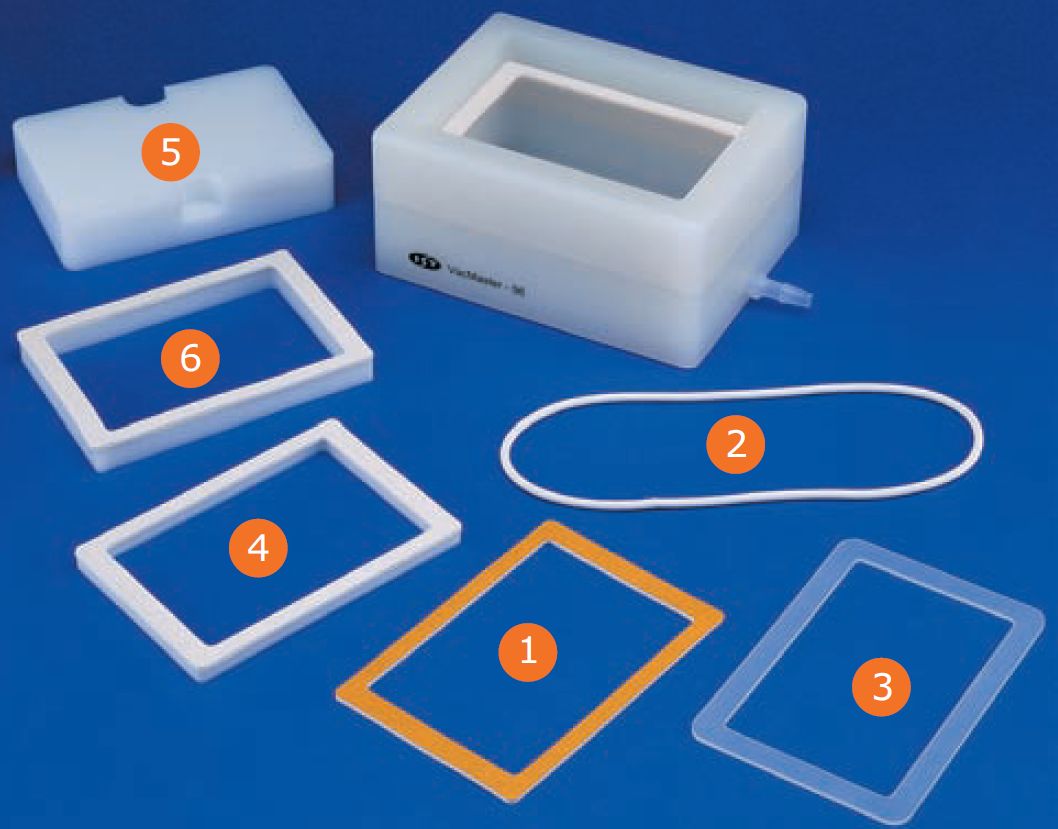

Replacement Parts



121-9612

 VacMaster-96 replacement gasket

1

121-9613

 VacMaster-96 replacement o-ring

1

121-9614

 Collection plate spacer (2 mm) for deep well collection plates

1

121-9610

 Array insert (6 mm), acetal

1

121-9615

 Collection plate spacer (29 mm) for shallow well collection plates

1

121-9611

 VacMaster-96 insert (12 mm) for “shallow skirt” plates

1




The VacMaster-96 sample processing manifold has been designed with the needs of the bioanalytical scientist in mind. This manifold is ideal when processing 96-well SPE, supported liquid extraction or protein precipitation plates either manually or with an automated liquid handling system. The robust, inert construction materials make it easy to clean – particularly important for biological fluid applications.

Features
  • Increase productivity by processing 96 samples simultaneously
  • Process a range of extraction and collection plates using this versatile, adaptable manifold
  • Reduce steps in automation sequences with the VacMaster-96's unique design features
  • Save space at the bench or on instrument decks with the compact, lightweight manifold

    Versatile System
    Fully compatible with both fixed well and modular Array plate designs from Biotage, the VacMaster-96 can also accommodate other brands of 96-well extraction plate using a range of spacers. A wide variety of collection plates can also be used, and cross contamination between wells is minimized by correct use of inserts and spacers in both base and lid, which aid plate positioning.

    Automation Friendly
    The VacMaster-96 is optimized for use with automated liquid handling systems, with features designed to minimize manual intervention. Its lightweight construction allows the lid to easily be manipulated, and the optional standalone vacuum control units mean space requirement on automation decks is minimized. The sloping polypropylene base drains waste quickly out of the manifold base, eliminating the need for a removable waste tray.

    Vacuum Control Options
    Free standing vacuum control units are available in two formats. Both polypropylene units are equipped with vacuum gauge and fine vacuum controller.


  •
