Á¦ Ç° ¸í : VacMaster¢â-10 and -20, À½¾Ð ó¸® ¸Å´ÏÆúµå
Á¦ Á¶ »ç : Biotage
Á¦Ç°ÄÚµå : 121-1016
°ü·ÃÀÚ·á: VacMaster-10&-20.pdf (442,273 KB)


»ó¼¼¼³¸í

VacMaster¢â-10 and -20
Sample Processing Manifolds

Ordering Information

Part #

Description

Qty.

121-1016

 VacMaster-10 Sample Processing Manifold
    complete with 16 mm collection rack and
    fitted with stainless steel needles (as option 4)

1

121-2016

 VacMaster-20 Sample Processing Manifold
    complete with 16 mm collection rack and
    fitted with stainless steel needles (as option 4)

1

¡¡

¡¡

Replacement Parts

¡¡

Tank

¡¡

¡¡

121-1039

 Replacement tank with fittings 1 (VacMaster-10)

1

121-2068

 Replacement tank with fittings 1 (VacMaster-20)

1

121-0029

 VacMaster waste outlet (complete) 1

1

121-0022

 VacMaster waste outlet (outer) 1

1

121-0023

 VacMaster waste outlet (inner) 1 w/ drain tube

1

121-0010

 PTFE T-valve (for connecting 2 tanks) 1

1

¡¡

¡¡

¡¡

Lid

¡¡

¡¡

121-1045

 Replacement lid with fittings (VacMaster-10)

1

121-2075

 Replacement lid with fittings (VacMaster-20)

1

121-1030

 Silicone lid gasket (VacMaster-10)

1

121-2059

 Silicone lid gasket (VacMaster-20)

1

121-0026

 Lid Leg

1

121-0018

 Vacuum gauge

1

121-0025

 Control arm assembly

1

121-0020

 Fine control valve

1

121-0019

 Vacuum relief valve

1

¡¡

¡¡

¡¡

Rack

¡¡

¡¡

121-1134

 Replacement 16 mm diameter 1 collection tube rack (VacMaster-10)

1

121-2163

 Replacement 16 mm diameter 1 collection tube rack (VacMaster-20)

1

¡¡

¡¡

¡¡

¡¡

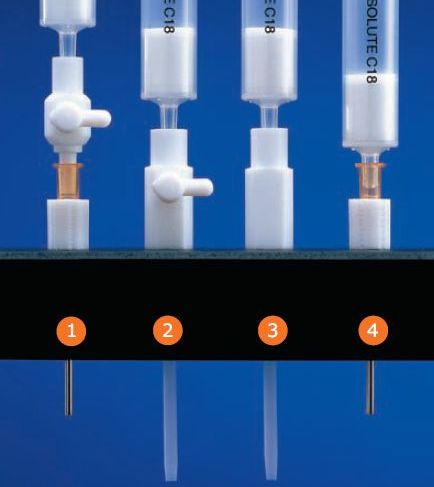

PTFE Stopcock Option and Spare Parts

¡¡

121-0009

 Universal PTFE stopcock ¨ç

10

121-0001

 PTFE stopcock/needle unit ¨è

10

121-0002

 PTFE needle ¨é

10

121-0003

 Stainless steel needle ¨ê

20

121-0004

 Stainless steel needle retainer

10

121-0005

 Port sealing plugs

30

121-0009-S

 PTFE stopcock - pressure positive

10




VacMaster Sample Processing Manifolds allow up to 10 (VacMaster-10) or 20 (VacMaster-20) SPE or filtration columns to be processed simultaneously under vacuum. Unused ports are sealed when not required. Easy to use vacuum controls provide excellent sample flow control, leading to reproducible, reliable extraction conditions.
The robust manifolds are constructed from high quality, inert materials, eliminating sample contamination, and allowing all common solvents and buffers to be used.
Designed to match the requirements of individual applications, a variety of collection vessels can be accommodated by the fully adjustable racking system.

Benefits
  • Save time by processing up to 10 or 20 samples simultaneously
  • Control sample flow individually using the PTFE stopcock option
  • No sample contamination due to inert, solvent resistant components
  • Meet elution volume collection needs with the easy to adjust rack system

    Flow Control Options
    VacMaster-10 and -20 systems are fitted with disposable stainless steel needles as standard. Optional flow control accessories include:

  • PTFE stopcocks - push fit stopcocks provide individual flow control for each column. PTFE construction means smooth operation without sticking.
  • Combined PTFE stopcock/needles - replace standard stainless steel needles with one-piece individual control units. 100% PTFE solvent path.
  • All needle and stopcock options are fully compatible with ISOLUTE SPE and filtration columns.

    Collection Rack Options
    Order VacMaster manifolds complete with racks (10, 12 or 16 mm diameter positions (plus 27 mm for VacMaster-10)) to accommodate a variety of collection vessels. Sample extracts are held securely by the height-adjustable 3 plate design. The carrying handle makes it easy to transport fully loaded racks.

    Specifications
  • Manifold dimensions (including lid fittings)
  • VacMaster-10: 280 x 250 x 140 mm
  • VacMaster-20: 380 x 250 x 140 mm

    Both systems come complete with:
  • lass tank fitted with PTFE waste outlet and drain tube
  • PTFE lid complete with 10 or 20 PTFE needle retainers, stainless steel needles and port sealing plugs
  • Lid also houses vacuum control arm including on/off valve, fine vacuum control and vacuum release valve.
  • Complete collection tube rack (polyethylene) with 10, 12 or 16 mm collection tube positions (plus 27 mm for VacMaster-10)

    Additional Features
  • Thick walled glass tank allows a clear view of the extraction process
  • Generous spacing between columns means all ports can be utilized simultaneously
  • Robust, easy to use vacuum controls are located on the lid, away from solvent and sample contamination
  • Waste can be either collected in the tank, or directed to a suitable trap for disposal
  • All systems fully safety tested at maximum vacuum (-20 "Hg) to ensure safe, reliable operation
  • Vacuum safety valve fitted as standard to all systems, preventing the maximum operating vacuum being exceeded


    		•
