| TurboVap LV Automated Evaporation System |
Features
√ Patented Vortex Shearing Technology
√ Proven compliance with EPA methods
√ 10x faster than centrifugal evaporators
√ 3x faster than hot blocks
√ 2x faster than conventional N2 blow down
√ Unattended operation for up to 50 samples (ASE version, 24 samples)
√ 12 racks available for tube sizes from 1.5 mL to 30 mL (ASE version, 40/60mL)
√ Controlled water bath adjustable from ambient to 90 °C
√ Built-in nitrogen regulator
√ Unattended operation improves lab productivity
√ User-friendly displays and diagnostics
√ Convenient size-no hood space required
√ No tube balancing required
√ Easily swap racks to change between different tube sizes
√ Requires no additional equipment such as vacuum pumps and vacuum traps | Ordering Information
| Part Number |
Description |
Qty |
| Biotage TurboVap® LV : 본체 |
| C103199 |
TurboVap LV without Racks, 230V, 50 positions |
1 |
| C103201 |
TurboVap LV, I Chem, 40/60ml vial, without Racks, 230V, 24 positions |
1 |
| C133718 |
TurboVap LV-PTFE without Racks, 230V, 50 positions |
1 |
| |
| Rack : 필수 추가구매 품목, 필요 Rack 선택, 1개 이상 |
| C101124 |
Rack Assembly, Conical Bottom, CG Vial, 50 POS, TurboVap LV |
1 |
| C101180 |
Rack Assembly, 24 POS, SCINT Vial, TurboVap LV |
1 |
| C103612 |
Rack Assembly, 50ml Centrifuge Tube, 24 POS, TurboVap LV |
1 |
| C122938 |
Rack Assembly, Vial, Screw Top 16 X 55 mm, TurboVap LV |
1 |
| C44139 |
Tube Rack (16x100mm tubes), TurboVap LV |
1 |
| C44282 |
Tube Rack (20x150mm tubes), TurboVap LV |
1 |
| C44283 |
Tube Rack (16x100 mm-Prelude compatible), TurboVap LV |
1 |
| C44577 |
Tube Rack (12x75mm tubes), TurboVap LV |
1 |
| C44880 |
Tube Rack (15ml Conical Centrifuge Tubes), TurboVap LV |
1 |
| C45269 |
Tube Rack (16x125mm tubes), TurboVap LV |
1 |
| C45286 |
Tube Rack (13x100mm tubes), TurboVap LV |
1 |
| C47818 |
Tube Rack (15 mL Autotrace tubes with conical bottom), TurboVap LV |
1 |
| C47820 |
Tube Racks (10 mL conical), TurboVap LV |
1 |
| C48928 |
Tube Rack (1.5 - 2.0 ml flip cap microcentrifuge tubes), TurboVap LV |
1 |
| C48929 |
Tube Rack (1.5 - 2.0 ml screw cap microcentrifuge tubes), TurboVap LV |
1 |
| C48950 |
Tube Rack (10x75mm tubes), TurboVap LV |
1 |
| C59546 |
Tube Rack (GC vials), TurboVap LV |
1 |
| C61345 |
Tube Rack (Chem Vials), TurboVap LV |
1 |
| C79687 |
RACK, VIAL, 4ML, 14x45MM, SCREW TOP, TurboVap LV |
1 |
| |
| 필수 준비 품목 : 필수 준비 품목 |
• 질소 공급장치 : 60 ~ 100 psi
• 가스 라인용 조절 장치(regulator)
• 증류수 Distilled Water |
| |
| Technical Specs |
| Tube Capacity |
50 test tubes, rack not included |
| Number of Samples |
50 |
| Water Bath Temperature |
Ambient to 90 °C. Temperatures below ambient can be regulated us |
| Timer Range |
1 to 99 minutes or 0.1 to 9.9 hours—can also be set to 00 for in |
| Gas Regulator & Gauge Range |
0 to 20 psi (0 to 207 kPa) |
| Gas Supply Requirements |
Min. inlet pressure 60 psi (413 kPa), Max. inlet pressure 100 ps |
| Exhaust Port |
2\" (5.1 cm) id; 12.5’ (3.8 m) of duct hose provided |
| Power Requirements |
110/120 VAC at 60 Hz (European, 230 VAC at 50 Hz) |
| Dimensions (WxDxH) |
21.2\" x 11.9\"x 11.9\" (53.8 x 30.2 x 30.2 cm) |
| Net Weight |
40.5 lbs. (18.47 kg) |
| Shipping Weight |
60 lbs. (27.2 kg) |
| Technology |
Gas vortex technology |
| Certifications |
2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive 93/68 |
| Gas control |
Gas can be turned on to each of five independent manifolds when |
| Max. sample volume |
30 mL (60 mL with ASE version) |
| Final endpoint volumes |
- |
| solvent reclamation |
- |

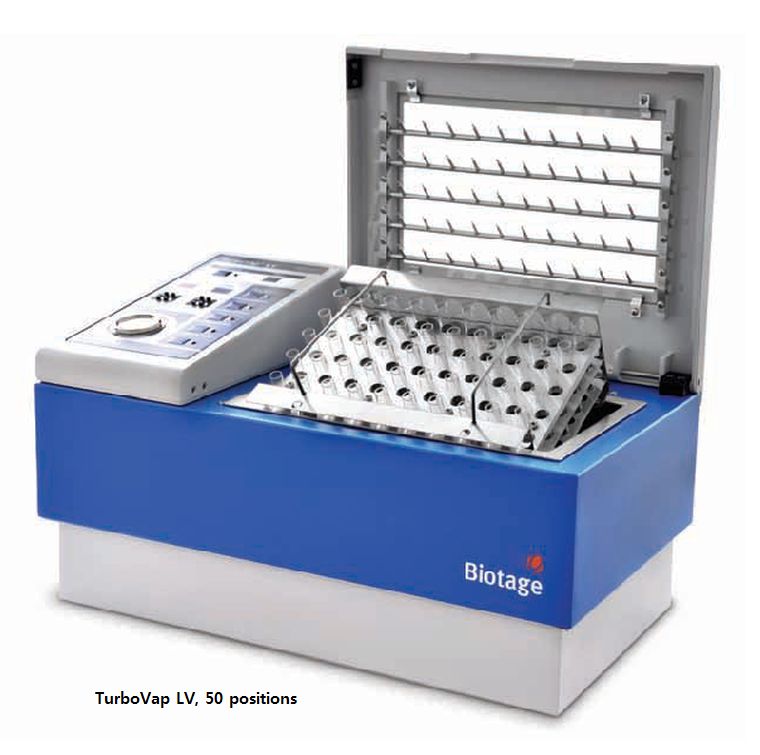

TurboVap® LV Concentration Evaporator Workstation provides simultaneous evaporation of up to 50 samples. This evaporation system offers many interchangeable tube racks giving you the flexibility for automated low volume sample preparation ranging in volumes size from 1.5 mL to 30 mL.

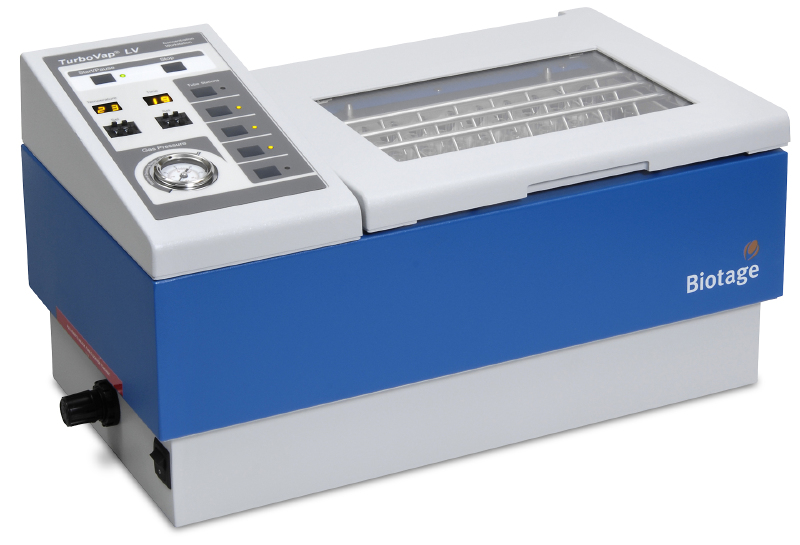

TurboVap® LV evaporation system is an automated high speed, low volume sample concentrator. It is an efficient alternative to the inconvenient set-up, constant monitoring and long evaporation times that are characteristic of conventional techniques. With the TurboVap LV system, you simply “load and leave”. A water bath gives an even temperature and gas flow is delivered over a set time period. Turn on 1 to 5 manifolds depending on the number of samples and the timer will alert you when your samples are ready.
The microprocessor-control provides monitoring of the timed operation and water bath temperature. It also provides automatic gas shutoff and operational diagnostics.
TurboVap® LV is commonly used for evaporation of solvents following solid phase extraction clean-up of drug samples or pesticide extracts. It is ideal for sample volumes of 1 mL to 30 mL that need to be evaporated in GC vials, microcentrifuge tubes, conical bottom tubes or test tubes. It offers a high throughput solution with 50 sample positions using the standard range of Biotage racks.
TurboVap® LV can be used in conjunction with the RapidTrace®+ Automated SPE workstation that collects extracts in 12 x 75 mm, 13 x 100 mm, or 16 x 100 mm test tubes. For acidic solutions, Biotage offer PTFE coated nozzles to prevent corrosion.

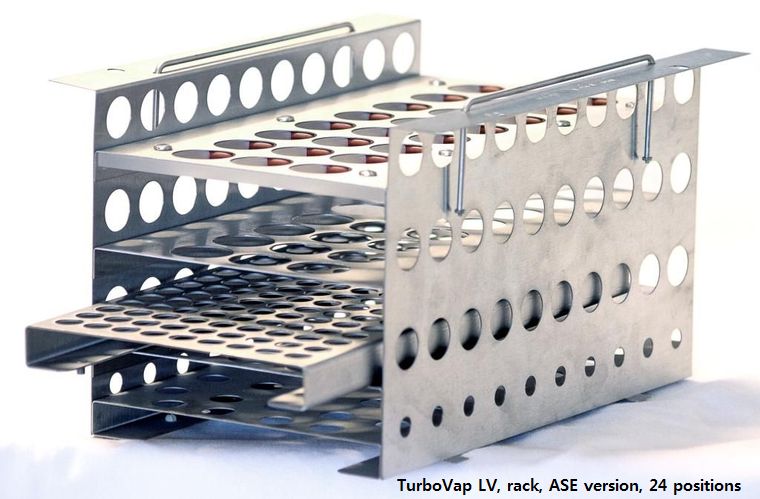

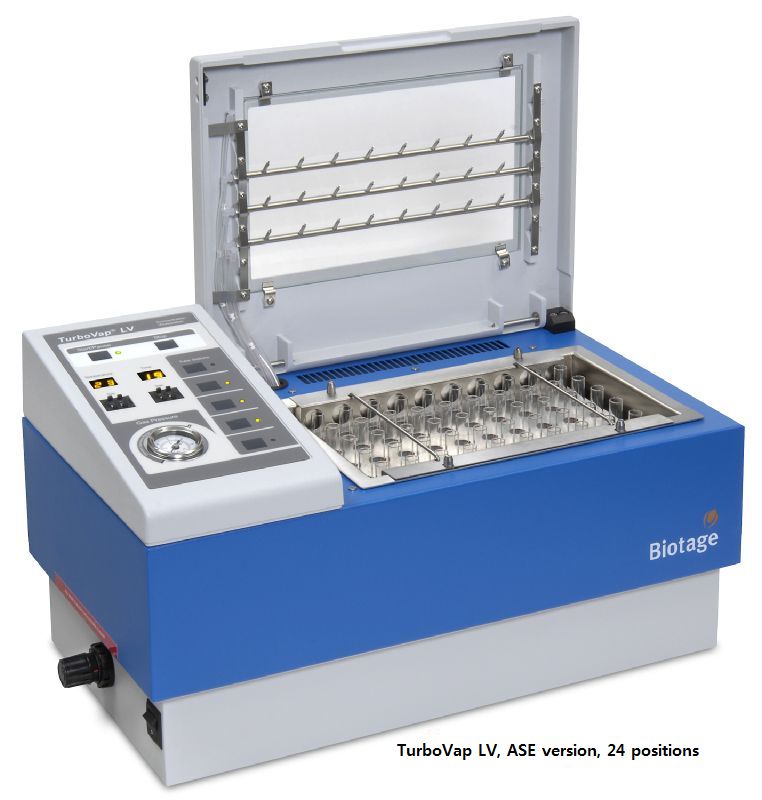

For volumes greater than 30 mL, an ASE compatible version of TurboVap® LV is available for use in conjunction with Dionex ASE 200 columns.
 |
