제 품 명 : TurboVap II, 시료 농축기
제 조 사 : Biotage
제품코드 : C103190
    · 관련자료:Biotage Evaporation Catalog
TurboVap II User’s Manual
TurboVap II Quick Guide
Evaporation Rates


상세설명

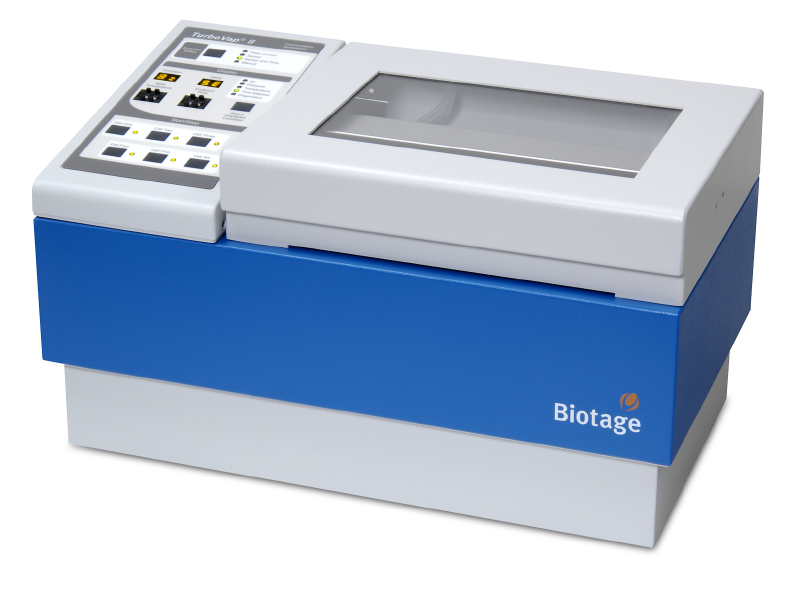

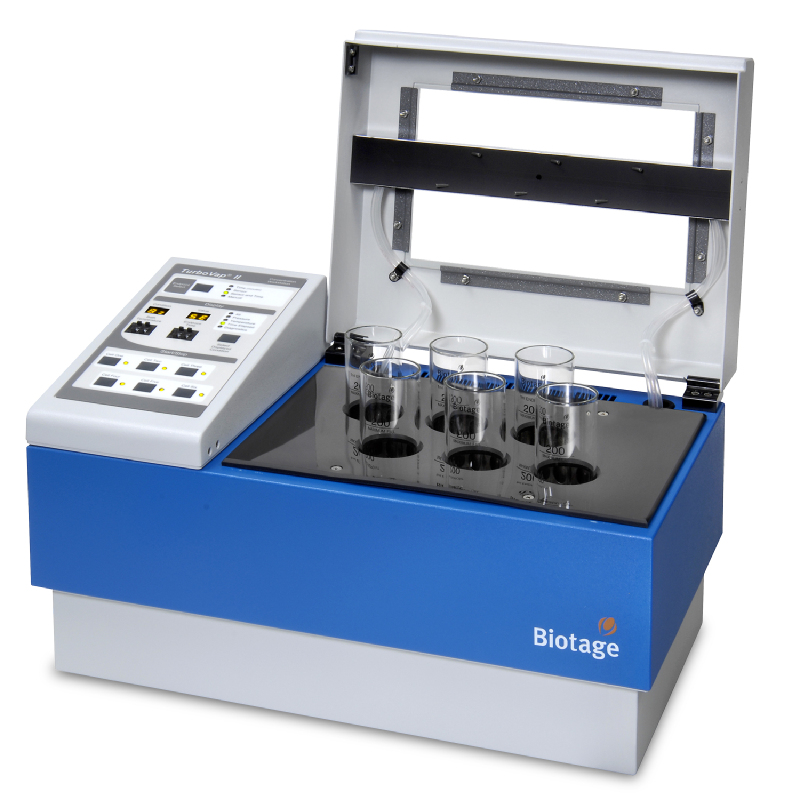

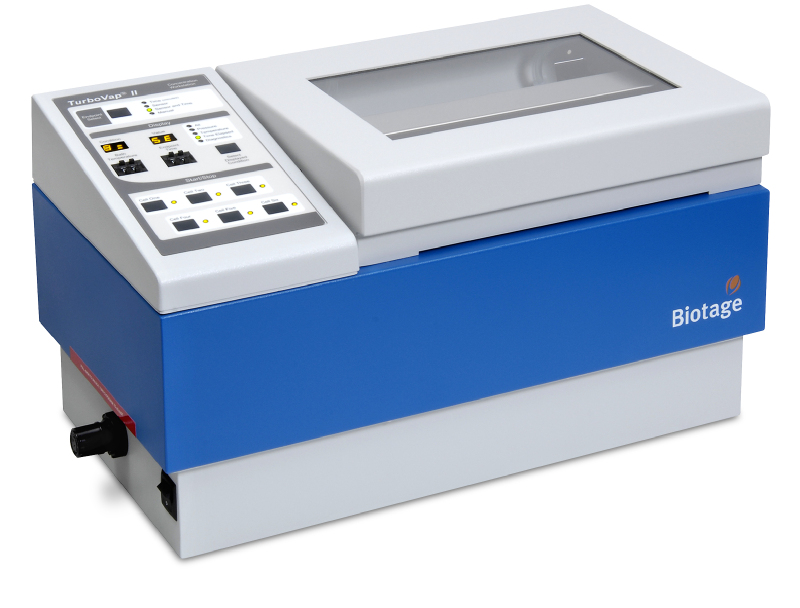

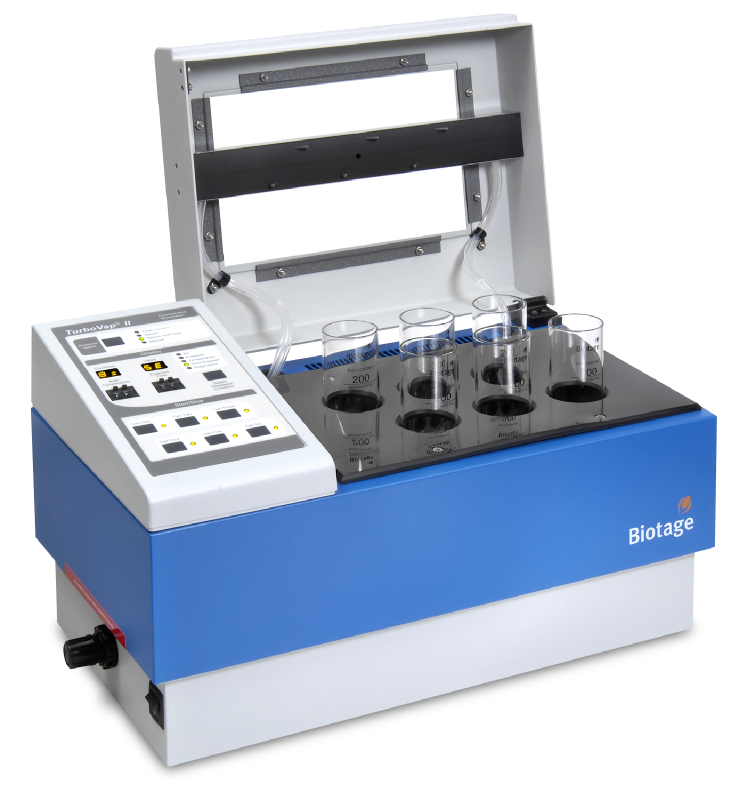

TurboVap II
Automated Evaporation System with Sensor Endpoint Detection
Advantages
√ Patented Vortex Shearing Technology
√ Patented Sensor Endpoint Detection - no monitoring required
√ Proven equivalency with EPA methods
√ Unattended operation for 1~6 samples
√ Controlled water bath is adjustab e from ambient to 90°C
√ Operators are free to perform other tasks while evaporation is running
√ User friendly displays and diagnostics
√ Convenient bench top size - no hood space required

Applications
√ Proven equivalency with EPA methods
√ Pharmaceutical biotech compounds
√ Clinical samples
√ Environmental samples
√ Forensic and crime samples
√ Drugs of abuse samples
√ Food and beverage analysis
√ Agrochemical samples
Ordering Information
Part Number Description Qty
Biotage TurboVap® II : 본체 (Evaporation Tube, 보조랙 포함)
C103190 TurboVap II, 200ml with 0.5ml Endpoint Stem, 220V 1
C103192 TurboVap II, 200ml with 1.0ml Endpoint Stem, 220V 1
C103193 TurboVap II, 50ml with 0.5ml Endpoint Stem, 220V 1
C103194 TurboVap II, 50ml with 1.0ml Endpoint Stem, 220V 1
C103197 TurboVap II, 40ml Dionex ASE Vial Compatible, 220V, Tube 불포함 1
C64676 TurboVap II ASE Upgrade Kit, 200ml/50mL to 40ml 1

Evaporation Tube : 추가구매 품목
C128506 Evaporation Tube, 200 mL, 1 mL Endpoint, 12/case 1 cs
C128507 Evaporation Tube, 200 mL, 0.5 mL Endpoint, 12/case 1 cs
C128511 Evaporation Tube, 50 mL, 1 mL Endpoint, 12/case 1 cs
C128508 Evaporation Tube, 50 mL, 0.5 mL Endpoint, 12/case 1 cs
C128512 Evaporation Tube, 50 mL, Centrifuge 1 cs

Accessories
C42566 Auxiliary Rack (50 mL Evaporation Tubes) for TurboVap II 1
C42567 Auxiliary Rack (200 mL Evaporation Tubes) for TurboVap II 1
C46464 Cover Plugs, 50 mL for TurboVap II, 6/Pkg 1 pk
C46463 Cover Plugs, 200 mL for TurboVap II, 6/Pkg 1 pk

필수 준비 품목 : 필수 준비 품목
• 질소 공급장치 : 30 ~ 80 psi
• 가스 라인용 조절 장치(regulator)
• 증류수 Distilled Water

Technical Specs
Power Requirements 100/120 VAC model : 105-132 VAC
200/220 VAC model : 198-292 VAC
Dimensions Height 12" (30.5 cm), Width 21.2" (53.8 cm), Depth 12" (30.5)
Fuses 100/120 VAC model : 1 ea 10A
200/220 VAC model : 2 ea 5A
Technology Gas vortex shearing evaporation with sensor endpoint detection
Number of samples 1~6
Timer range 1 to 99 min. or 0.1 to 9.9 hrs.
Max. sample volume 200 mL
Final endpoint volumes 0.5 or 1 mL
Solvent reclamation -
Water bath capacity 6.4 L of distilled water
Water bath temp. Ambient to 90 °C (Upper temperature with sensors is 60 ºC)
Gas supply requirements Minimum inlet pressure 30 psi, 2.1 bar Maximum inlet pressure 80
Gas consumption At 11 psi: 0.08 cfm/nozzle or 2.3 L/min/nozzle
Exhaust 25 CFM blower with 5.1 cm (2") venting exhaust (tube supplied)
Weight 18.4 kg/40.5 lbs
Certifications 2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive 93/68

TurboVap® II Concentration Evaporator Workstation is a microprocessor-controlled concentrator used for sample preparation that provides unattended, automated sample evaporation.

The six position evaporation systems uses a patented gas vortex shearing action and optical sensors to provide fast and efficient evaporation of organic solvents.

Units may be configured to accommodate either 50 mL or 200 mL glassware with either 0.5 mL or 1.0 mL endpoint stems. TurboVap® II Evaporation System efficiently concentrates samples prior to analysis by LC/MS or other analytical instruments.

Optical sensors automatically stop gas flow when evaporation has reached its end-point, thereby eliminating the risk of drying and loss of volatile compounds.

TurboVap II is suitable for evaporation of large volumes after liquid-liquid extractions.

TurboVap II is available in a Dionex ASE compatible setup which accommodate the use of six 40 mL stemmed and graduated Dionex ASE tubes. Upgrade kits are also available for converting your old TurboVap II.
